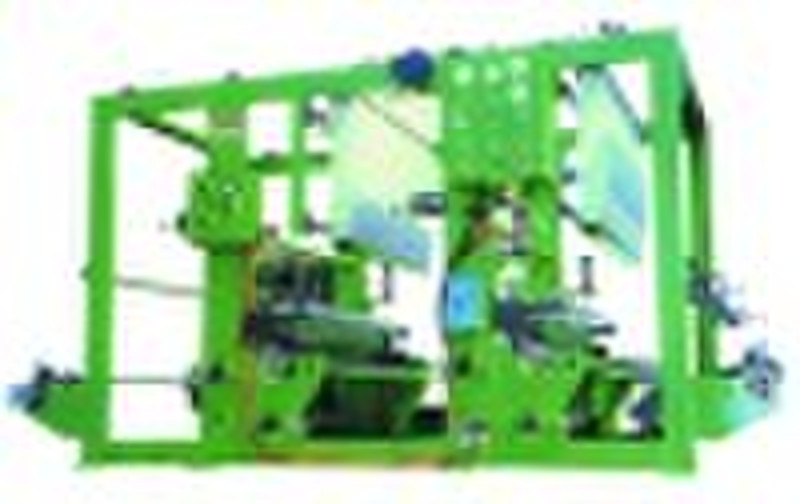

500Double color ordinary Gravure Printing Machine

500Double color ordinary Gravure Printing MachineSpecificationsprinting machine,flexo printing machine, HXH-500 Double color ordinary Gravure Printing MachineHXH-500DoublecolorordinaryGravurePrintingMachineUsage It is suitable for BOPP, , al-plated film, al-tissue and the compound film and paper with the same properties. This machines printing speed is 10--100 meters per minute.1The main transmission device adopts velocity modulation electrical machinery, speed velocity modulation control. 2Adopt combined type, realize frontage and reverse side one time prints continuously. 3Material-collecting hauling adopt double moment of force electrical machinery, material-feeding be controlled by the magnetic powder machine. Material-collecting adopt turns over the double location, realize the engine wont be off, connecting change the material. 4Drying system adopt sealed drying oven, the temperature be controlled warm automatically, and it has the same future as the meter counter. 5The pressure of blowing ink broadsword Parallel highly. It can adjust crosswise move repeatedly and willfully. 6Rubber-plated roller pressure-rise adopt manually. Relative version adopt differential motion type of drive, printing plate be adjust longitudinal 360 degrees willful. Crosswise adjustment quantity is 30mm Main technology parameterModelAY600AY800AY1100Web Width600mm800mm1100mmPrinting speed50m/min50m/min50m/minPrint Cyl. Dia.Φ70-300mmΦ70-300mmΦ70-300mmWeb diameterΦ600mmΦ600mmΦ600mmPrint Cyl. Longitudinal adjustable30mm30mm30mm3200×1600×1900 mm3200×1600×1900 mm360°360°Registering accuracy±0.2mm±0.2mm±0.2mmTotal power13kw17kw19kwWeight1800kg2000kg2400kgOverall dimensions (L×W×H)3200×1600×1900 mm3200×1600×1900 mm
